Power Supply

Power Supply

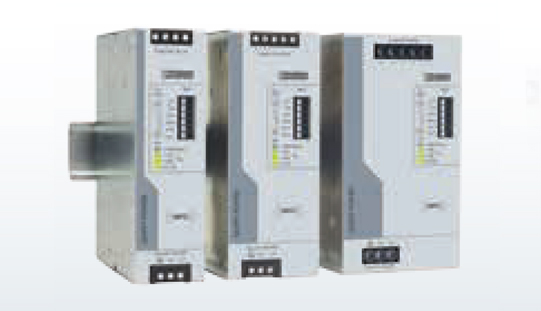

  • AC/DC Converter QUINT POWER with Advance Functionality

    QUINT Power maximizes the availability of your system. Output Power available upto 1000 W in various adjustable voltage range 12, 24, 48 and current from 3.5 A …..40 A.

    • Universal I/P range for AC & DC applications in 1ϕ and 3ϕ
    • Quick triggering of commercial grade ckt. Breakers with SFB technology
    • Power reserve for system expansion and ability to start heavy loads
    • Preventive Function monitoring reports critical operating states before they occur
    • Configurable as per customer need

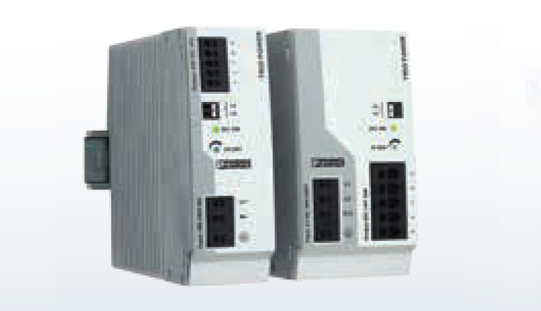

  • AC/DC Converter TRIO POWER with Basic Functionality

    Trio Power combines basic functionality with high quality and reliability. Output Power available upto 1000 W in various adjustable voltage range 12, 24, 48 and current from 2.5 A …..40 A.

    • Wide Input range for 1ϕ and 3ϕ applications
    • Robust design with Metal housing and wide temperature range
    • Third negative terminal for grounding on the secondary side
    • Compensation of voltage drop with set point in front

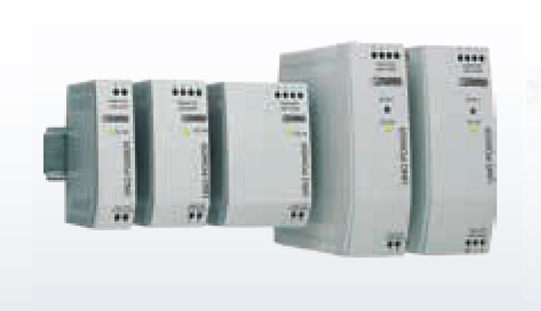

  • AC/DC Converter UNO POWER with High efficiency for stand alone applications

    UNO Power offers the ideal solution for loads up to 240 W especially in compact control boxes. Output Power available in various voltage range 5, 12, 15, 24, 48 and wattage from 25 W ..240 W.

    • Wide I/P range 85-264 VAC for 1ϕ
    • High Energy efficiency of over 90% and low no-load losses < 0.3 W
    • Save Space in control cabinet due to high power density
    • Compact design with height 84 mm, tailored to all popular 120 mm control boxes

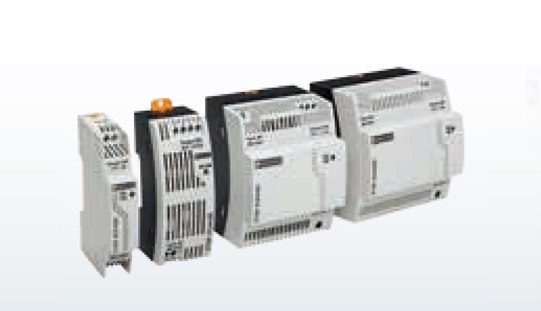

  • AC/DC Converter MINI & STEP POWER for Decentralized Automation

    MINI & STEP Power supplies are ideal choice for Measurement & Control Technology and flat control panels for building installation. Output Power available in various adjustable voltage range 5, 12, 15, 24, 48 and current from 0.5 A …..8 A.

    • Universal Input range for AC & DC Application in 1ϕ
    • Maximum energy efficiency and incredibly low idling losses
    • Easy-maintenance with Coded pluggable connectors
    • Function monitoring with LEDs and Active Signal Contacts
    • Outdoor installation wide temperature range from -25°C to +70°C

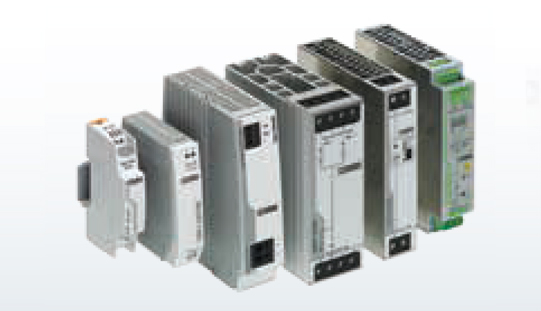

  • DC/DC Converter For Superior System Availability

    Quint and Mini DC/DC converters alter the voltage level at the end of long cables and also create electrically isolated independent supply system. Output Power available in various adjustable voltage range 5…60 VDC and current from 0.7 A……20 A.

    • Constant voltage, even at the end of long cables
    • Wide input voltage range from 9….75 VDC
    • Unique feature of SFB and Power Boost available
    • Function monitoring with LED, Active signals, Relay contacts

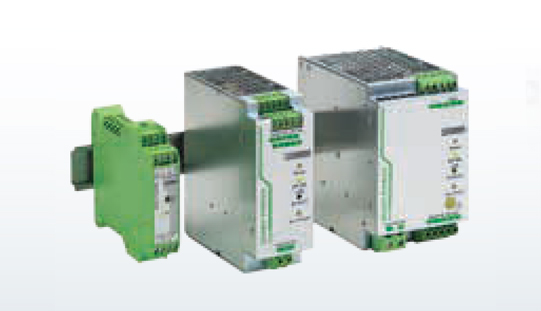

  • Redundancy Solution MOSFET & DIODE for High operational reliabilit

    Phoenix Contact offers the ideal solutions for Decoupling, Monitoring and controlling of redundancy modules to increase system availability, in redundant/parallel operation, Modules available upto 2X40/1X80 for redundant/parallel operation.

    • ACB Technology to ensure equal load sharing
    • Uniform load distribution to double the Power Supply service life
    • Preventive function monitoring with LEDs, Relay Contacts and Selector switch
    • 70% energy saving due to Mosfet technology

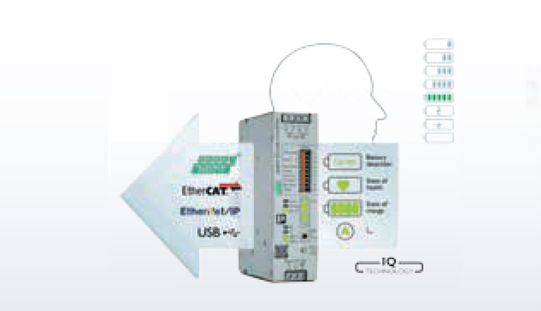

  • UPS Modular & Integrated solution for High System Availability

    UPS continue to deliver power even in the event of mains failure. With IQ technology, you are one step ahead in DC as well as AC UPS application. O/P power available upto 12/24 V DC, 2A…40 A in DC UPS and 500 VA to 1 KVA in AC UPS.

    • Complete monitoring of UPS as well as power storage device
    • Maximize the service life of power storage device
    • Transfer all relevant information to your computer/controllers
    • Pre alarming about failure at an early stage
    • Integrated interface for PROFINET, EtherNet/IPTM, EtherCAT and USB
