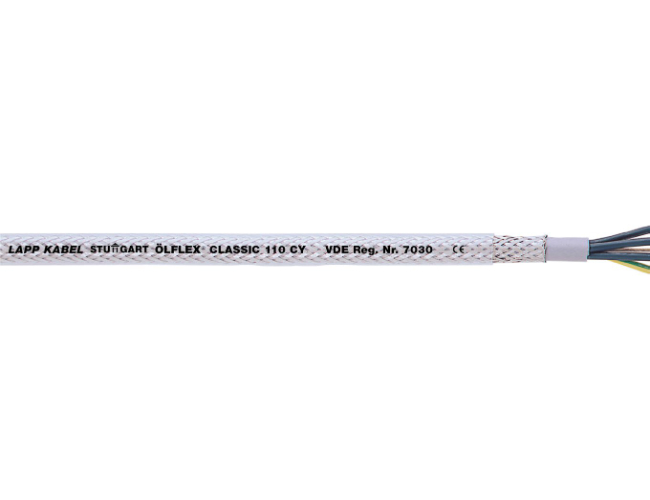

ÖLFLEX® CLASSIC 110 CY

Low Voltage (LV) power and control cable, Multicore for general applications, fixed and occasional flexing installation, indoor, outdoor and direct burial use, Flame Retardant to IEC 60332-1-2, UV – Resistant, OZONE Resistant, U0/U : 600/1000 V, 4 Cores, 2.5mm2, Number coded, Copper Braided (Screened – EMC complaint), Polyvinyl chloride (PVC) outer sheath colour Black, 14.6mm OD. Confirmed to CE, Approval – Fire protection.

Product Description

Application Range

Plant engineering Industrial machinery Heating and air-conditioning systemsPower stations
In EMC-sensitive environments(electromagnetic compatibility)
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Servo Drive Connection Cable
Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous
For frequency converter-powered 3-phase AC motors

Norm References / Approvals

Based on VDE 0250-1 and HD 627-1 S1

Product Make-Up

Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
PVC inner sheath, black
Tinned-copper braiding
PVC outer sheath, black (RAL 9005)

Product Features

Flame-retardant according IEC 60332-1-2
UV and weather-resistant according to ISO 4892-2
High degree of screeninglow transfer impedance (max. 250 ?/km at 30 MHz)
Ozone-resistant according to EN 50396

Technical Data

Minimum Bending Radius

Static/Occ. moved: 6/20xOD*

Nominal Voltage

U0/U: 600/1000 V

Test Voltage

4000 V

Core Identification Code

Black with white numbers acc. to VDE 0293-1

Temperature Range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

Classification ETIM 5

ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable
