Crimping K50 Series

Crimping K50 Series

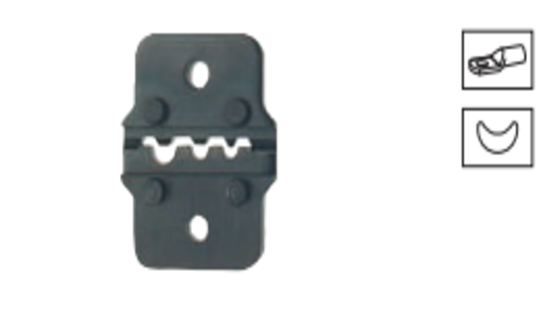

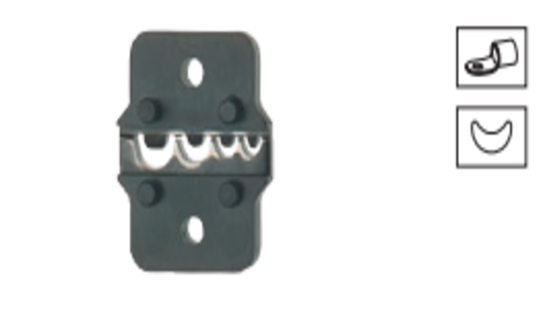

  • Crimping dies R 50, indent crimping

    Suitable for

    • Tubular cable lugs and connectors – Cu, standard type
    Cross section mm² For item Part No
    0.75 – 2.5 91R, 92R, 93R R501
    4 – 10 94R, 95R, 2R R502

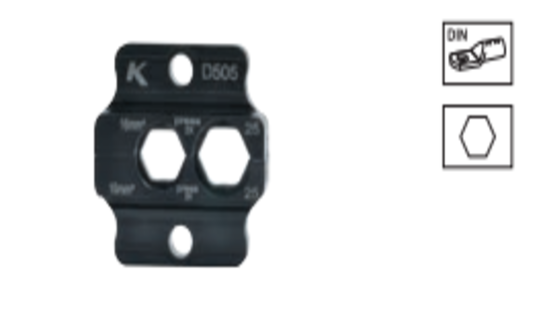

  • Crimping dies D 50

    Suitable for

    • Compression cable lugs to DIN 46235 and connectors to DIN 46267, part 1 – Cu
    Cross section mm² Part No
    6 – 16 D504
    16 – 25 D505

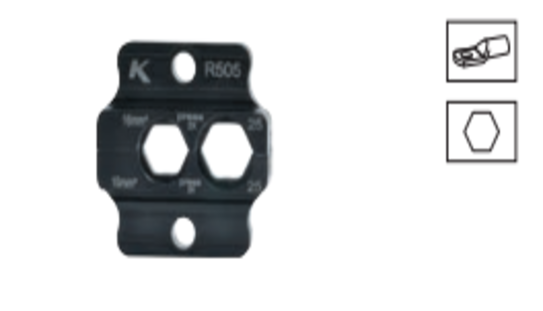

  • Crimping dies R 50, hexagonal crimping

    Suitable for

    • Tubular cable lugs and connectors – Cu, standard type
    Cross section mm² Part No
    6 – 16 R504
    16 – 25 R505

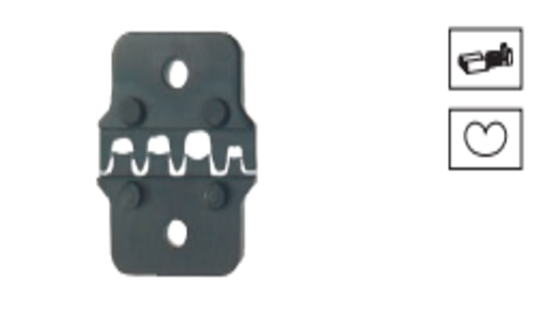

  • Crimping dies Q 50

    Suitable for

    • Solderless terminals to DIN 46234 and pin terminals to DIN 46230 – Cu
    • Solderless connectors to DIN 46341 – Cu
    Cross section mm² Part No
    0.5 – 10 Q501

  • Crimping dies M 50

    Suitable for

    • Tubular cable lugs and connectors for solid conductors
    Cross section mm² Part No
    1.5 – 4 M50154
    6 – 10 M50610

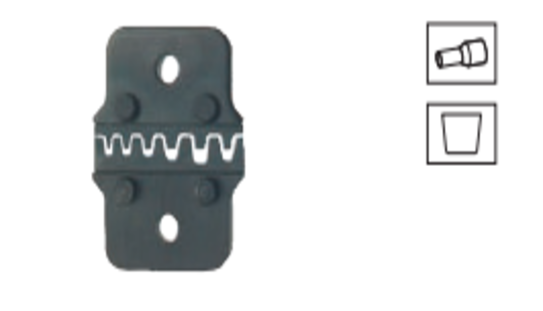

  • Crimping dies AE 50

    Suitable for

    • Cable end-sleeves
    Cross section mm² Part No
    0.14 – 10 AE501
    10 – 25 AE502
    35 – 50 AE503

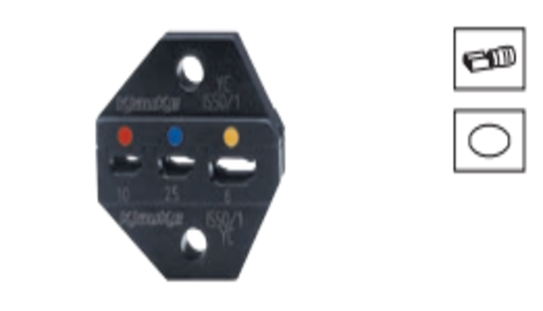

  • Crimping dies IS 50, single crimping

    Suitable for

    • Insulated cable connections, single crimping
    Cross section mm² Part No for item
    10 – 16 IS5072 ST1716IS, ST1717IS,652C5, 652C6, 653C6
    0.5 – 2.5 IS504 670 WS, 680 WS
    4 – 6 IS505 700 WS

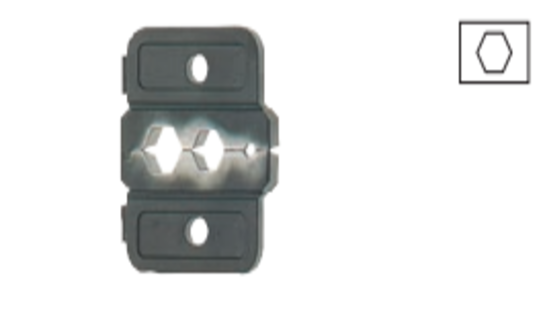

  • Crimping dies BNC 50

    Suitable for

    • Stud and shielded sleeves
    • BNC plugs for coax cable RG 58, 59, 62 and 71
    Part No
    BNC501

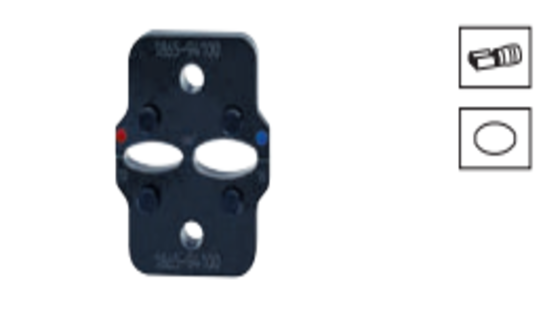

  • Crimping dies IS 50, double crimping

    Suitable for

    • Insulated cable connections, double crimping
    Cross section mm² Part No for item
    0.5 – 6 IS501
    0.1 – 1 IS503 IS503

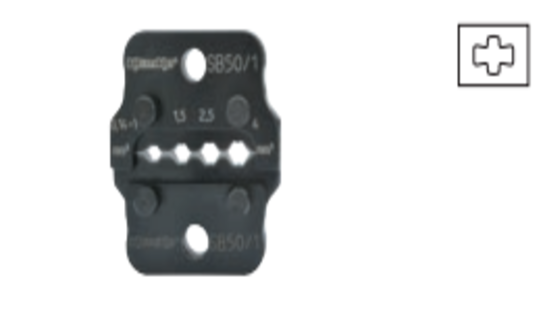

  • Crimping dies SB 50

    Suitable for

    • Turned pin receptacles
    • Pin connectors
    Cross section mm² Part No
    0.1 – 1; 1.5 – 2.5; 4 SB501

  • Crimping dies CR 50

    Suitable for

    • Non-insulated receptacles
    • Pin connectors
    Cross section mm² Part No for item Tab Width
    0.25 – 6 CR501 2.8 / 6.3
    0.5 – 2.5 CR502 4.8
    0.5 – 1 CR503 38201, 38201A 2.8
    0.5 – 2.5 CR504 3720, 3735 6.3
    0.5 – 1.5 CR505 3725 6.3
